JB2162-77系列方形端蓋重型冶金設備液壓缸
本系列液壓缸主要適用于冶金設備、重型機械、亦可用于其他行業。工作壓力≤16MPa，缸徑50~250mm，環境溫度-20℃~80℃。

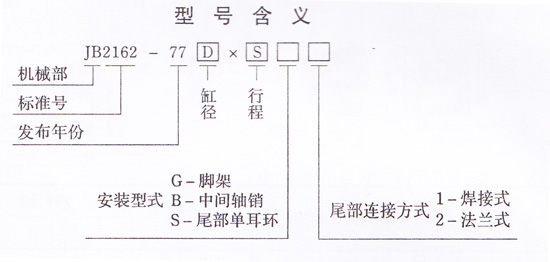

規格/技術參數
|
缸徑mm
|
50
|
63
|
80
|
100
|
125
|
160
|
200
|
250
|
||
|
桿徑mm
|
28
|
35
|
45
|
55
|
70
|
90
|
110
|
140
|
||
|
速比Φ
|
1.46 |
|||||||||
|
活塞面積c㎡
|
無桿腔
|
19.64
|
31.17
|
50.27
|
78.54
|
122.70
|
201.06
|
314.20
|
490.87
|
|
|
有桿腔
|
13.48
|
21.55
|
34.37
|
54.78
|
84.22
|
137.44
|
219.17
|
336.93
|
||
|
6.3Mpa
|
推力
|
KN
|
12.40
|
19.60
|
31.16
|
49.50
|
77.25
|
126.70
|
197.90
|
309.25
|
|
拉力
|
8.50
|
13.57
|
21.70
|
34.50
|
53.20
|
86.60
|
138.00
|
204.40
|
||
|
10Mpa
|
推力
|
KN
|
19.60
|
31.17
|
50.30
|
78.50
|
122.70
|
201.00
|
314.00
|
4903.87
|
|
拉力
|
13.50
|
21.55
|
34.40
|
54.80
|
84.20
|
137.40
|
219.20
|
336.93
|
||
|
16Mpa
|
推力
|
KN
|
31.40
|
49.90
|
80.00
|
125.70
|
196.30
|
321.70
|
502.70
|
785.40
|
|
拉力
|
21.60
|
34.50
|
55.00
|
87.60
|
135.00
|
220.00
|
350.00
|
519.10
|
||
|
行程Smm
|
Smin
|
50
|
63
|
80
|
100
|
125
|
160
|
200
|
250
|
|
|
Smin
|
500
|
630
|
800
|
1000
|
1250
|
1600
|
2000
|
2500
|
||

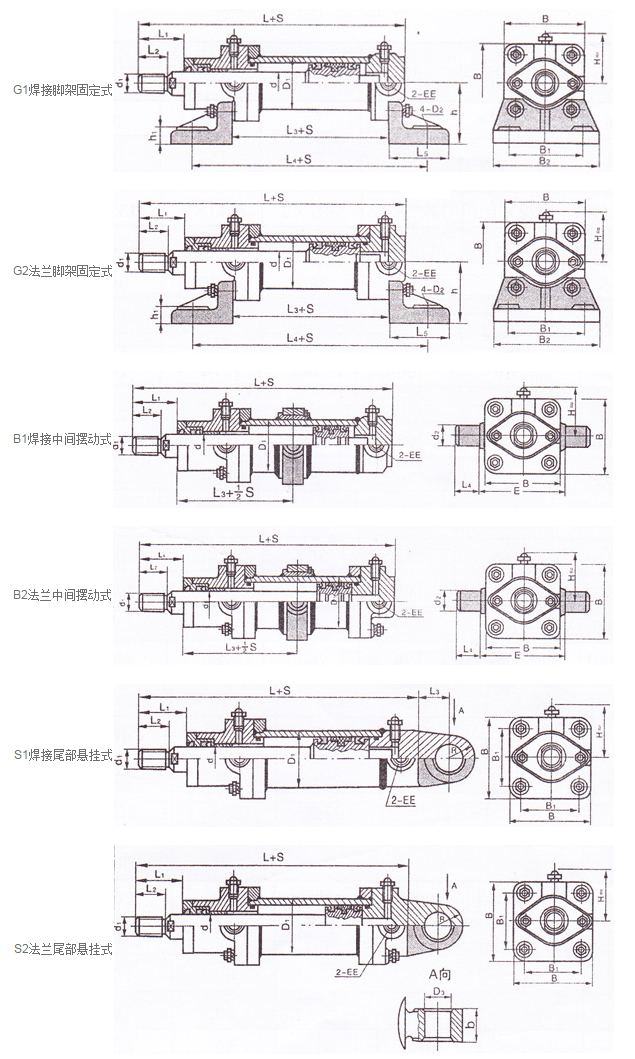

外形安裝圖
|
|
外形安裝圖
|
缸徑D
|
50
|
63
|
80
|
100
|
125
|
160
|
200
|
250
|
|
|
桿徑d
|
28
|
35
|
45
|
55
|
70
|
90
|
110
|
140
|
|
|
D1
|
63.5
|
76
|
102
|
121
|
152
|
194
|
245
|
299
|
|
|
EE
|
M18×1.5
|
M22×1.5
|
M27×2
|
M27×2
|
M33×2
|
M33×2
|
M242×2
|
M48×2
|
|
|
d1
|
M22×1.5
|
M27×2
|
M33×2
|
M42×2
|
M52×2
|
M68×2
|
M85×3
|
M100×3
|
|
|
L
|
245
|
290
|
340
|
390
|
460
|
560
|
675
|
790
|
|
|
L1
|
55
|
65
|
80
|
95
|
105
|
140
|
165
|
200
|
|
|
L2
|
30
|
40
|
50
|
60
|
70
|
100
|
110
|
130
|
|
|
B
|
90
|
115
|
140
|
165
|
210
|
260
|
310
|
360
|
|
|
H≈
|
66
|
79
|
92
|
105
|
127
|
152
|
177
|
202
|
|
|
G1/2
|
D2
|
18
|
22
|
26
|
32
|
40
|
45
|
50
|
60
|
|
L3
|
110
|
131
|
160
|
180
|
203
|
254
|
285
|
345
|
|
|
L4
|
220
|
261
|
310
|
360
|
413
|
490
|
545
|
705
|
|
|
L5
|
75
|
85
|
100
|
120
|
140
|
168
|
190
|
240
|
|
|
B1
|
90
|
105
|
120
|
200
|
210
|
320
|
400
|
400
|
|
|
B2
|
130
|
145
|
170
|
260
|
280
|
420
|
520
|
520
|
|
|
h
|
75
|
90
|
105
|
125
|
150
|
200
|
235
|
260
|
|
|
h1
|
17
|
20
|
22
|
28
|
30
|
40
|
50
|
52
|
|
|
B1/2
|
d2（f9）
|
30
|
35
|
40
|
50
|
50
|
60
|
80
|
100
|
|
L3
|
125.5
|
147.5
|
162
|
197.5
|
235
|
265
|
330
|
375
|
|
|
L4
|
30
|
35
|
40
|
50
|
50
|
60
|
80
|
100
|
|
|
E
|
105
|
120
|
155
|
185
|
220
|
235
|
340
|
415
|
|
|
S1/2
|
D3(H10)
|
30
|
40
|
50
|
60
|
70
|
100
|
110
|
130
|
|
L3
|
35
|
40
|
45
|
60
|
60
|
70
|
90
|
110
|
|
|
b
|
35
|
45
|
45
|
65
|
70
|
70
|
90
|
120
|
|
|
R
|
30
|
35
|
40
|
50
|
50
|
60
|
80
|
100
|
|
